Description
The Industrial Data Logger is intended for data acquisition and logging from different types of analog and digital input modules. The Logger is based on Compact RIO chassis and modules by National Instruments Company. The Logger is a multichannel data logging system.

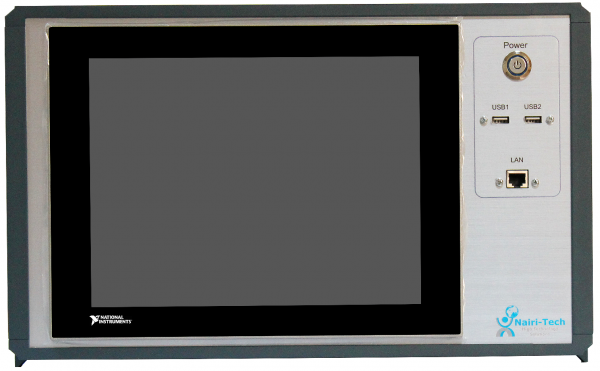

The data are acquired and logged from voltage-based analog input, digital input and thermocouple sensors modules. The acquired data from the connected sensors are transferred to an industrial touch panel host computer (TPC) through Ethernet channel and are logged to the internal memory of the TPC. The software allows a visualization of the live data in real-time mode and logging the acquired data. The software is developed in LabVIEW graphical programming environment and has a user-friendly interface.
Features
1. Possibility of data acquisition from various sensors:
- Temperature, pressure, position and speed sensors
- Termocouples
- Strain gages
- Accelerometers
2. Possibility of sampling rate configuration for each module.
3. Selection of the strain gauge bridge circuit.
4. Visualization of the live data in real-time mode and logging the acquired data.
Watch the Product Video
Scroll down the page to the Brochures section for more information and downloading the brochure.
|
