Description

The processes simulation stand automation system is intended to create the most reproducible, as well as flexible regulated and precisely maintained conditions for conducting in an automatic mode experiments to study the noise of fluid filtration through a porous medium.

The automation system is designed on the basis of the control equipment of National Instruments.

Also specifically for the automation system the NTCB-01 connector block was developed which provides communication between the data acquisition boards and external devices.

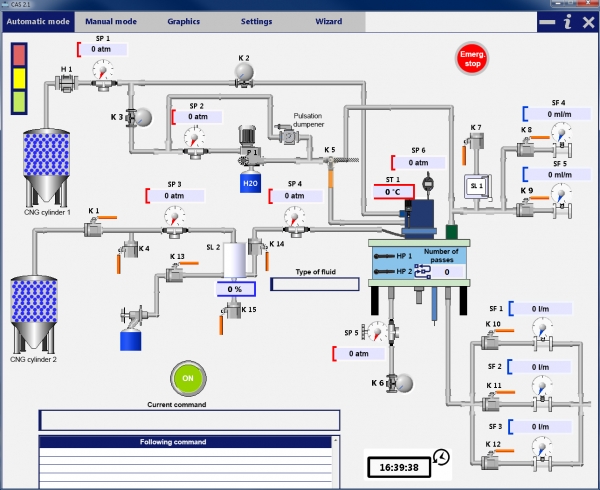

The plant specialized software is developed in the LabVIEW graphical programming environment.

System Features

• Registration of acoustic signals which arise out during fluid movement through a porous medium and their recording in an audio file of the .wav format
• Measurement and control of the fluid injected temperature
• Setting and maintenance of various pressure/flow modes for fluids/gas used
• Pressure distribution to the test samples according to the given algorithm
• Data acquisition from sensors and generation of control signals to the plant actuating mechanisms according to the given algorithm
• Automatic pressure release and activation of the alarm in the event of abnormal situations on the stand
